**NEW** Jenix scale to
replace your Sargon scale.
These
are not direct replacement
scales.
You
will need to drill new
mounting holes and change
the resolution of the
display.
We
supply installation
instruction and display
change instructions.
It is
still cheaper than buying a
new system!!!

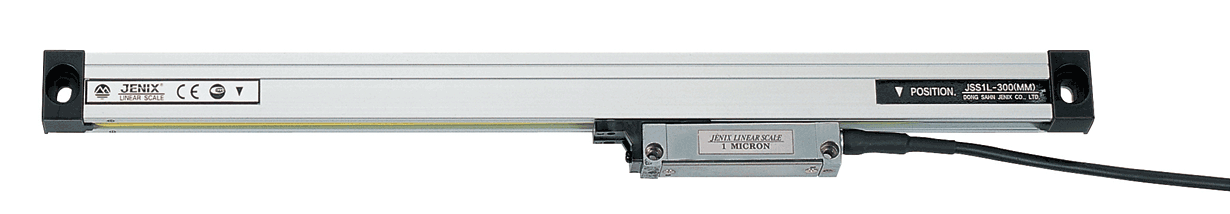

A grating glass,
guaranteeing high accuracy,
is installed inside a linear
scale body .
There
are four types in Jenix
linear scale: Satandard,
Slim, Ultra-slim and
magnetic scale for long size
(MSS/MSO).
|
|
A
grating glass,
guaranteeing high
accuracy, is
installed inside a
linear scale body .
There are four
types in Jenix
linear scale:
Satandard, Slim,
Ultra-slim and
magnetic scale for
long size (MSS/MSO).
|
|
TYPE
|
MODEL
|
RANGE
|
|
|
|
JSM
|
50~3000
(mm)
|
|
|
|
JSS
|
50~1000
(mm)
|
|
|
|
JSN
|
50~450
(mm)
|
|
|
Magnetic
|
MSO
|
over
5000mm
|
|
|
MSS
|
3100~5000(mm)
|
|
|
|
|
|
|
Resolution
|
mm
|
inch
|
Example
|
|
1L
|
1/1000 mm
|
0.00004 inch
|
JSS1L-500 , JSN1L-250
|
|
5L
|
5/1000mm
|
0.0002 inch
|
JSS5L-750, JSM5L-3000, MSS5L-4000
|
|
10L
|
1/100 mm
|
0.0004 inch
|
MSS10L-4000, MSO10L-8000
|
|
|
*
Ordering
Details
|
Linear scale
|
Style
|
Resolution
|
Measuring length
|
Overall length
|
|
JSN1L- 250 (10")
|
Ultra slim
|
1/1000mm (= 0.00004inch)
|
250mm (10")
|
400mm (16")
|
|
JSS5L- 800 (32")
|
Slim
|
5/1000mm (=0.0002inch)
|
800mm (32")
|
1000mm (40")
|
|
JSM5L-1300 (52")
|
Standard
|
5/1000mm (=0.0002inch)
|
1300mm (52")
|
1500mm (60")
|
|
MSO10L-5000
|
Magnetic
|
1/100mm (=0.0004inch)
|
5000mm
|
5200mm
|
|
|
|
|
*
SCALE
SPECIFICATION
|
|
MODEL JSM,JSS,JSN1L(5L)
mm(inch)
|
Effective
measuring length
mm(inch) |
Max. movable
Length (mm(inch) |
Overall Length |
| JSS, JSM |
JSN |
JSS, JSM |
JSN |
| 50 (2) |
50 (2) |
90 (3.54) |
70 (2.76) |
250 (10) |
200 (08) |
| 100 (4) |
100 (4) |
140 (5.51) |
120 (4.72) |
300 (12) |
250 (10) |
|
150 (6)
|
150 (6)
|
190 (7.48) |
170 (6.69) |
350 (14) |
300 (12) |
|
200 (8)
|
200 (8)
|
240 (9.44) |
220 (8.66) |
400 (16) |
350 (14) |
|
250 (10)
|
250 (10)
|
290 (11.41) |
270 (10.63) |
450 (18) |
400 (16) |
|
300 (12)
|
300 (12)
|
340 (13.38) |
320 (12.60) |
500 (20) |
450 (18) |
|
350 (14)
|
350 (14)
|
390 (15.35) |
370 (14.57) |
550 (22) |
500 (20) |
|
400 (16)
|
400 (16)
|
440 (17.32) |
420 (16.54) |
600 (24) |
550 (22) |
|
450 (18)
|
450 (18)
|
490 (19.29) |
470 (15.80) |
650 (26) |
600 (24) |
|
500 (20)
|
500 (20)
|
540 (21.25) |
520 (20.47) |
700 (28) |
650 (26) |
|
600 (24)
|
600 (24)
|
640 (25.19) |
620 (24.41) |
800 (32) |
750 (30) |
|
700 (28)
|
700 (28)
|
740 (29.13) |
720 (28.35) |
900 (36) |
850 (34) |
|
750 (30)
|
750 (30)
|
790 (31.10) |
770 (30.31) |
950 (38) |
900 (36) |
|
800 (32)
|
800 (32)
|
840 (33.07) |
820 (32.28) |
1000 (40) |
950 (38) |
|
900 (36)
|
900 (36)
|
940 (37.00) |
920 (37.00) |
1100 (44) |
1050 (42) |
|
1000 (40)
|
1000 (40)
|
1040 (40.94) |
1020 (40.16) |
1200 (48) |
1150 (46) |
|
1100 (44)
|
1100 (44)
|
1140 (44.88) |
1120 (44.09) |
1300 (52) |
1520 (50) |
|
1200 (48)
|
1200 (48)
|
1240 (48.81) |
|
1400 (56) |
|
|
1300 (52)
|
1300 (52)
|
1340 (52.75) |
|
1500 (60) |
|
|
1400 (56)
|
1400 (56)
|
1440 (56.69) |
|
1600 (64) |
|
|
1500 (60)
|
1500 (60)
|
1540 (60.62) |
|
1700 (28) |
|
|
1600 (64)
|
1600 (64)
|
1640 (64.56) |
|
1800 (72) |
|
|
1700 (68)
|
1700 (68)
|
1740 (68.50) |
|
1900 (76) |
|
|
1800 (72)
|
1800 (72)
|
1840 (72.44) |
|
2000 (80) |
|
|
1900 (76)
|
1900 (76)
|
1940 (76.37) |
|
2100 (84) |
|
|
2000 (80)
|
2000 (80)
|
2040 (80.31) |
|
2200 (88) |
|
|
2100 (84)
|
2100 (84)
|
2140 (84.25) |
|
2300 (88) |
|
|
2200 (88)
|
2200 (88)
|
2240 (88.18) |
|
2400 (96) |
|
|
2300 (92)
|
2300 (92)
|
2340 (92.12) |
|
2500 (98) |
|
|
2400 (96)
|
2400 (96)
|
2440 (96.06) |
|
2600 (104) |
|
|
2500 (98)
|
2500 (98)
|
2540 (100.00) |
|
2700 (106) |
|
|
2600 (104)
|
2600 (104)
|
2640 (109.93) |
|
2800 (112) |
|
|
2700 (106)
|
2700 (106)
|
2740 (107.87) |
|
2900 (114) |
|
|
2800 (110)
|
2800 (110)
|
2840 (111.81) |
|
3000 (118) |
|
|
2900 (114)
|
2900 (114)
|
2940 (115.74) |
|
3100 (122) |
|
|
3000 (118)
|
3000 (118)
|
3040 (119.68) |
|
3200 (126) |
|
|
|
|
Other sizes available,
please call 877-376-4373 for
more information.
|
TECHNICAL
SPECIFICATION |
|
|
JSS, JSM,
JSN-
1L
(1/1000mm) |
JSS,JSM,JSN-
5L
(5/1000mm) |
JSS, JSM -
1LF
(Feed back
or
NC scale) |
Remark |
|
Output
signal |
 |
 |
 |
※ Additional
extension
cables are
optional. |
|
Measurement |
20㎛ (0.0008
inch) Glass
scale |
|
Accuracy |
2+2L/1000mm |
3+3L/1000mm |
2+2L/1000mm |
|
Resolution
|
1㎛(0.001mm) |
5㎛(0.005mm) |
1㎛(0.001mm) |
Output pulse
|
250 pulse/mm |
50 pulse/mm |
250 pulse/mm |
Max.
Traveling
Speed
|
36m / min
(120ft/min) |
60m / min
(200ft/min) |
36m / min
(120ft/min) |
|
Reference
signal |
25mm (0.98
inch) |
Grating
period
|
0.02mm
(0.0008
inch) |
|
Moving force |
≤ 5 N |
Max.
vibration
|
30 ㎨ (3G) |
|
Storage
temp. |
-20℃ ~
70℃(-4℉~158℉) |
Working
ambient
temp.
|
-5℃ ~
45℃(23℉~113℉) |
Supply
voltage
|
+5V, ±5%,
150mA |
|
Protective
design grade |
(1)
Equivalent
to Ip53,
(2)Improvement
of the
design grade |
|
 |

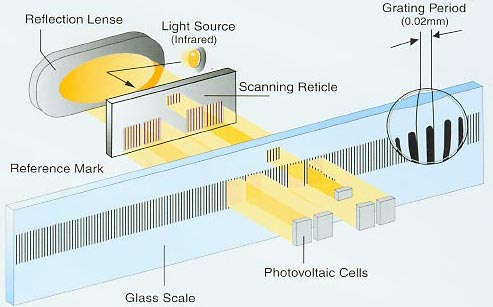

By the relative
moving of MAIN scale
and INDEX scale,
light signal is
changed to Electric
signal.
After that, it is
made to high
divisional signals
via the Electric
circuit |
The JSN model scales are
5.90" longer than the stated
travel.
JSN model front to back
measurement is 0.078"
JSN model top to bottom
measurement is 1.25"
The JSS model scales are
7.87" longer than the stated
travel
JSS model front to back
measurement is 0.086"
JSS model top to bottom is
1.33"
Resolution:
Scale resolution is
5um/.0002".
Instructions are included to
change the resolution of
your display from
10um/.0005" to 5um/.0002"
