XTG300 series miniscales







SMALLER, SMARTER, MORE ROBUST!

UNBELIEVABLY FORGIVING!



  Our new XTG300 series are so good, frankly they are unbelievable! They are better than you have imagined in your wildest dreams.

Glass miniscales so forgiving, so robust, you simply have to see them to believe them. Combining the precision of glass scales and an unprecedented level of protection, the XTG300 series miniscales don't just surpass the competition, they simply leave them in the dust. Installation is so easy, you almost can't go wrong.

Sargon does it again, leading the industry with innovative and logical designs.



 1 µm, 2 µm, 5 µm, 10 µm

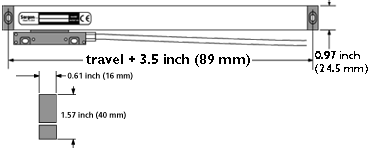

  to show more detail, click here or on the drawing




XTG300 series

XTG375 (1 µm) [0.00005 inch], XTG310 (2 µm) [0.0001 inch], XTG330 (5 µm) [0.0002 inch], XTG350 (10 µm) [0.0005 inch]

measuring standard glass scale
grating period 16 µm, 40 µm
accuracy at 20ºC (68ºF) ±4 µm/m (±50 micro inch/ft)
cable lengths 3.4 m (11 ft), 7.6 m (25 ft), or longer upon request
signal output 5 V TTL compatible quadrature square waves





[html manual]

 manual
